Analyze PCAPs in Claude Desktop with the PcapAI MCP Server

The PcapAI MCP (Model Context Protocol) server lets an AI agent like Claude Desktop open a local .pcap or .pcapng file by path and run full AI network forensics on it — deep packet inspection, threat detection, and MITRE ATT&CK mapping — without you touching a browser. Think of it as a Wireshark alternative for AI agents: instead of building display filters by hand, you ask a question in plain language and get back ranked findings and a forensic PDF report. It is open source (MIT) and ships as a single Rust binary.

New to PcapAI? The MCP server shares the same engine as the browser-based PCAP analyzer and the REST API — pick the integration that fits your workflow.

What the MCP server does

Once connected, your agent can interrogate any local capture in plain language and receive structured, actionable forensics:

The two tools your agent calls

The server exposes exactly two tools to the model. Claude decides when to call them based on your request; you rarely invoke them by hand.

Worked example: a suspicious capture, start to finish

Here is a sanitized end-to-end run against a fictional incident capture. All addresses use documentation ranges (RFC 5737) and example.com hostnames.

1. You ask

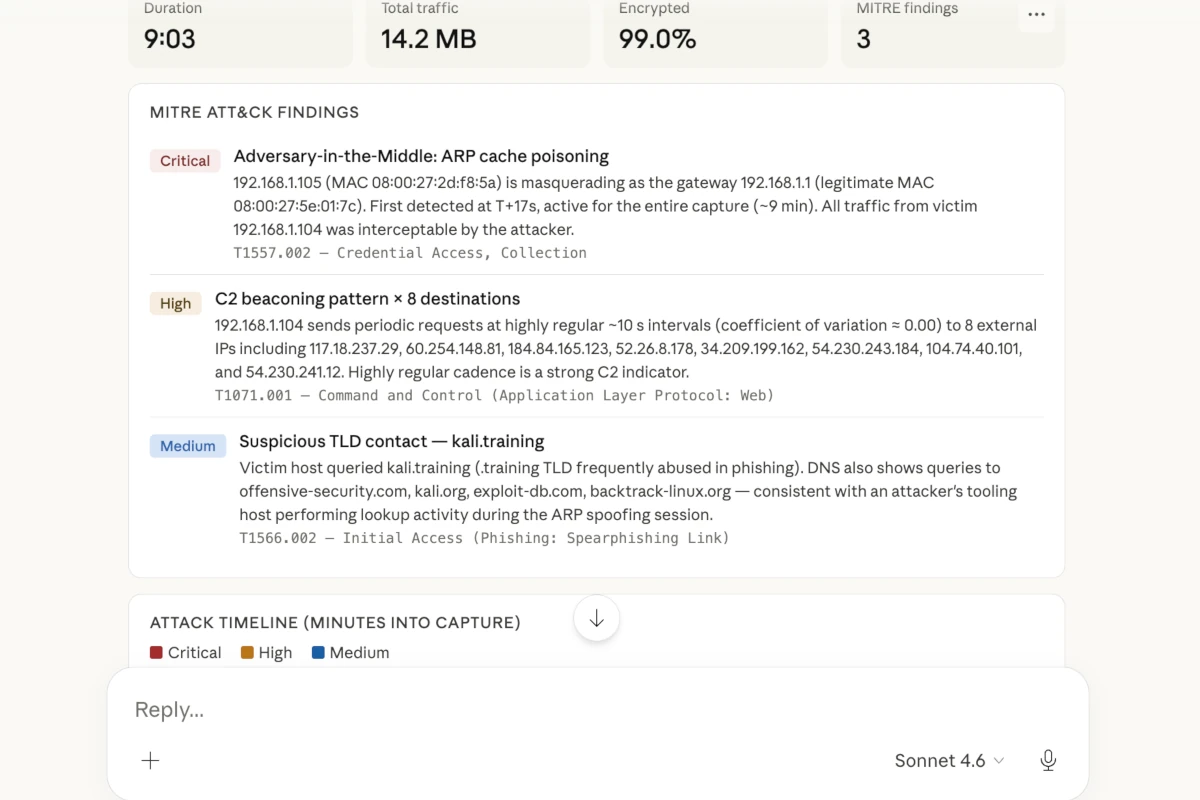

2. The server returns finding cards

3. With the supporting MITRE ATT&CK mapping

4. The raw JSON your agent reasons over

{
  "pcapFilename": "incident-2026-06.pcap",
  "networkSummary": { "duration_s": 612, "packets": 48213, "talkers": 17 },
  "securityAnomalies": [
    {
      "title": "Periodic C2 beacon",
      "severity": "critical",
      "src": "10.20.3.41",
      "dst": "203.0.113.66",
      "detail": "TLS beacon to cdn-sync.example.com every ~60s, jitter < 2s"
    }
  ],
  "mitreAttackTechniques": [
    { "id": "T1071.001", "name": "Application Layer Protocol: Web Protocols" },
    { "id": "T1048.003", "name": "Exfiltration Over Unencrypted Non-C2 Protocol" },
    { "id": "T1046",     "name": "Network Service Discovery" }
  ],
  "resolvedNames": { "203.0.113.66": "cdn-sync.example.com" }
}

5. And the PDF report it can generate

Sample output. See the same detection written up as a full case study: PhantomStealer C2 beacon detection.

MCP server vs. web app vs. manual Wireshark

The MCP server and the web uploader run the same engine; Wireshark is a different kind of tool. Use this to pick the right one for the job.

Open source, MIT-licensed

The server is written in Rust and released under the MIT license. Pre-built binaries for every supported platform are on GitHub Releases — no Rust toolchain required unless you want to build from source.

View the source on GitHub: pcap-ai/mcp-server

Install the binary

The server ships as a single self-contained binary named pcap-ai-mcp. Pick whichever method fits your environment.

Option A — download a pre-built binary (recommended)

Grab the archive for your platform from the GitHub Releases page:

Rename the downloaded asset to pcap-ai-mcp (the macOS/Linux assets have no extension) and place it on your PATH — for example /usr/local/bin/pcap-ai-mcp. On macOS you may need to clear Gatekeeper quarantine with xattr -d com.apple.quarantine pcap-ai-mcp.

Option B — build from source with Cargo

With the Rust toolchain (1.75+) installed, build the latest version yourself:

git clone https://github.com/pcap-ai/mcp-server.git
cd mcp-server
cargo build --release

The compiled binary lands at target/release/pcap-ai-mcp.

Connect it to Claude Desktop

Register the binary under mcpServers in Claude Desktop's config file, then restart the app.

Step 1 — edit claude_desktop_config.json

The file lives at:

• macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
• Linux: ~/.config/Claude/claude_desktop_config.json
• Windows: %APPDATA%\Claude\claude_desktop_config.json

Add an entry pointing command at the binary you installed. Use the env block to pass your API key (recommended), or omit it to stay in guest mode:

{
  "mcpServers": {
    "pcapai": {
      "command": "/usr/local/bin/pcap-ai-mcp",
      "env": {
        "PCAPAI_API_KEY": "your_api_key_here"
      }
    }
  }
}

Step 2 — guest mode or API key

Without PCAPAI_API_KEY, the server runs in guest mode: free, 20 MB cap, summary-level findings. With a key from the Advanced plan, you get the 100 MB cap, full JSON, and PDF reports. You can set the key in the env block above, or export it in your shell instead of editing the config:

export PCAPAI_API_KEY="your_api_key_here"

Generate a key from your account settings once you are on the Advanced plan.

Step 3 — restart and verify

Fully quit and relaunch Claude Desktop. The PcapAI tools appear in the tool palette; confirm the connection by asking "What PcapAI tools do you have available?"

Privacy & data handling

Be precise about what happens to your packets. The MCP server reads the capture from your local disk — your agent passes a file path, so there is no manual browser upload — and then transmits it over an encrypted TLS 1.3 connection to the PcapAI engine, which is where the analysis actually runs.

Captures are processed in isolated containers, are not added to your saved report cabinet, and are purged automatically after processing. Because analysis is performed server-side, the server needs outbound network access — it does not run offline or air-gapped. If your captures cannot leave your environment under any circumstances, the MCP server is not the right tool.
